HT6000-CH08 is HTFuture's large-capacity transmission platform, applicable to various network levels such as national, provincial, and metropolitan core, and meets TBit capacity requirements. It is the industry's most cost-effective transmission application platform. It builds a large Granular WDM transmission solution.
Ultra-velika zmogljivost inteligentna menjalnika platforma
Standard 2U, 19 inch, 8 reže
Dvojna moč napajanje AC/DC opcijsko
Večkratnik storitev kartica hibrid vstavljanje
Podpora 10G/100G/200G/400G hibrid menjalnik
Aplikacije
Standardna 19 palci 2U podvozje
High integration: supports 7 general service slots and 1 NMS slot
The single sub-rack supports up to 28x10G service forwarding
The single sub-rack supports up to 3x100G service forwarding
The single sub-rack supports up to 3x200G service forwarding
The single sub-rack supports up to 3x400G service forwarding
Enojna podstojala podpira up do 7*16 valovna dolžina multipleksiranje in demultipleksiranje
Unified platform: supports mixed insertion of various service cards and unified network management
Visoka zanesljivost: modularna moč napajanje zasnova, podpora za priključitev in odklop, dvojna napajanje napajanje 1 plus 1 zaščita
Dobro toplota disipacija zmogljivost: 4 visoka zmogljivost, visoka hitrost ventilator zasnova za zazagotavljanje zadostno toplota odvajanje
Specifikacije
|
Parametrov |
Tehnično indeks |
|
Velikost |
2U 19 palcev |
|
Reža |
8 sloti:1 NMS slot,7 service sloti |
|
Zmogljivost |
Enojna stojalo podpira up 7x16 valovna dolžina multipleksiranje in demultipleksiranje A single rack supports up to 28x10G service forwarding A single rack supports up to 3x100G service forwarding A single rack supports up to 3x200G service forwarding A single rack supports up to 3x400G service forwarding |
|
Napajanje napajanje |
Dual Power 1 plus 1 protection, AC: 220V（85V~220V）/DC: -48V（-36~-72}V） Optional |
|
Moč poraba |
Polna opremljena ＜200W |
|
Ventilator |
3pcs visoka zmogljivost, visoka hitrost ventilator za zagotavljanje odlično toplota odvajanje zmogljivost |
|
Delovanje temperatura |
-10} stopinja 7E 60 stopinja |
|
Shranjevanje temperatura |
-40 degree ~ 80 degree |
|
Relativno vlažnost |
5 odstotek ~ 95 odstotek Ne kondenzacija |
|
Velikost |
282.5（W）× 89（H）×350（D） (mm) |
|
Teža |
10kg |
HT6000 include the the following kartice
|
NMS upravljanje kartica |
100G OTU (skladno) |

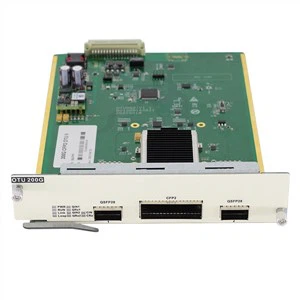

200G OTU (Coherent) |
|
100G Muxponder: QSFP28 ↔ 4xSFP28 |
40G&100G OEO: 6*QSFP28 |
SFP28 25G Quad transponder |
|
SFP plus Multi-Rate Quad transponder |
Redundant Multi-Rate Dual transponder |
EDFA Optični ojačevalniki |
|
Bidi EDFA Optični Ojačevalniki |
16ch DWDM MUX/DEMUX |
40ch DWDM MUX/DEMUX（AAWG） |
|
OLP Optično Linija Zaščitnik |
DWDM pasivno Optično Dodaj/Drop multiplekserji |
DCM kartica |
